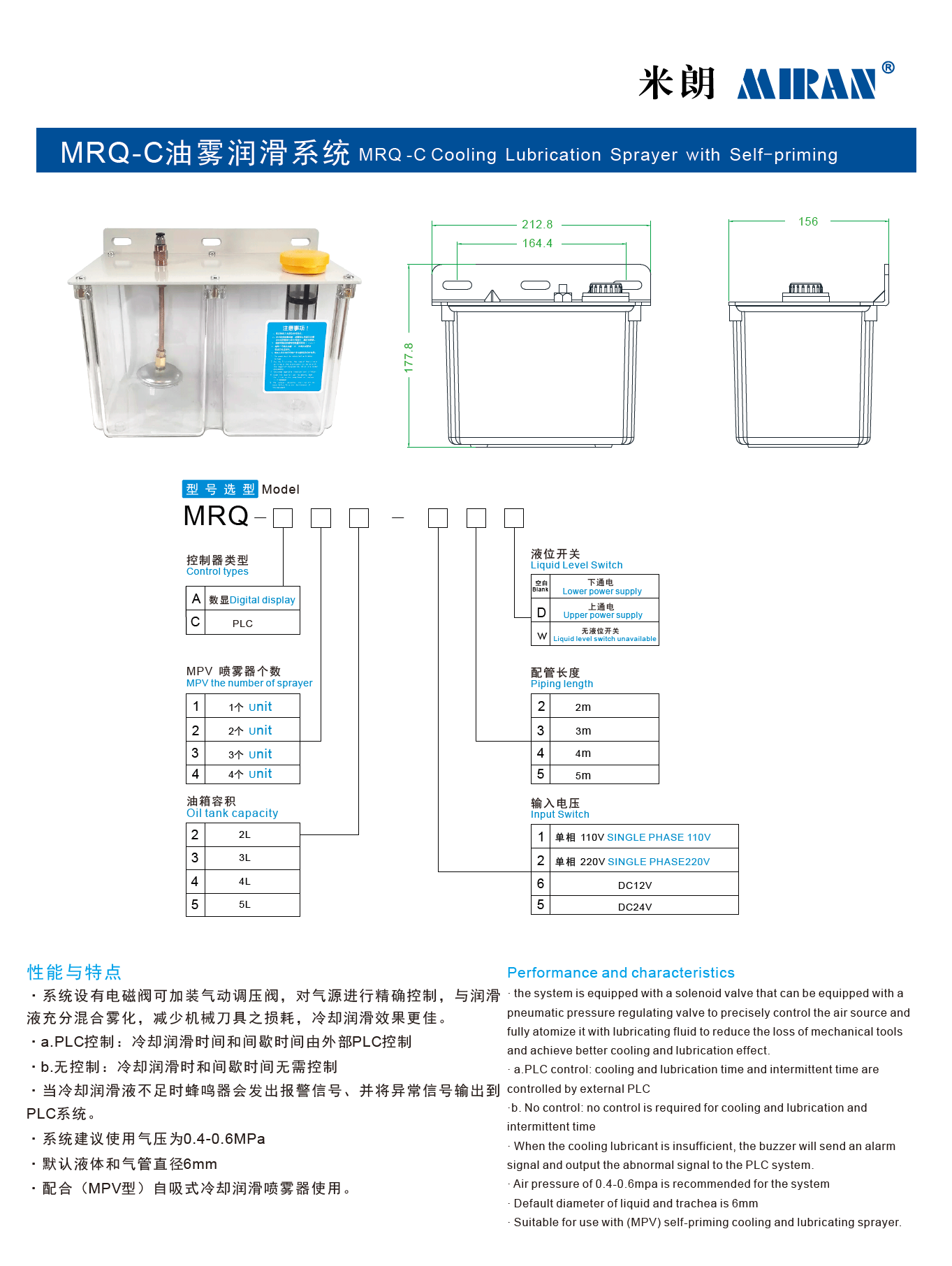

the system is equipped with a solenoid valve that can be equipped with a pneumatic pressure regulating valve to precisely control the air source and fully atomize it with lubricating fluid to reduce the loss of mechanical tools and achieve better cooling and lubrication effect.
· a.PLC control: cooling and lubrication time and intermittent time are controlled by external PLC
·b. No control: no control is required for cooling and lubrication and intermittent time
· When the cooling lubricant is insufficient, the buzzer will send an alarm signal and output the abnormal signal to the PLC system.
· Air pressure of 0.4-0.6mpa is recommended for the system
· Default diameter of liquid and trachea is 6mm
· Suitable for use with (MPV) self-priming cooling and lubricating sprayer.
